Drum & Tote
Our drum & tote liquid filling machine line offers both semi-automatic drum & tote filling and fully auto drum and tote filling machines. These machines handle drums (15,16,30 and 55 gallon) and a wide variety of tote IBCs. These auto drum and tote machines are customized to meet your exact filling performance requirements and your budget. A wide variety of conveyor configurations are available.
Get a Quote on a Drum & tote Filling Machine
Pivot-Style Semi-Automatic Drum & Tote Filling Machine
| For Containers: |  |
 |
Semi-automatic drum and tote filling machine, with space saving pivot-style lance column, is designed to fill 15, 30 and 55 gallon plastic or metal drums an a variety of tote sizes and styles. High Accuracy Net Weight Filling. Top fill, sub-fill and bottom fill modes. Proportionally controlled filling lance with no upstream valves required. Cleaning-while filling station for optional, additional filling lances. 316/316L pacified product contact parts. Automatic, powered container height adjustments. Allen-Bradley PLC for Machine Control, Color HMI Touch Screen Interface, Multiple conveyor configurations, including: gravity roller or powered conveyors in addition to zoned in-feed and out-feed powered conveyor sections. Swing Arm & Slide to Position the Nozzle. Simple Operation.
Get a Quote on a Pivot-Style Semi-Automatic Drum & Tote Filling Machine
Swing-Arm Style Semi-Automatic Drum & Tote Filling Machine
| For Containers: | |
|
Semi-automatic drum and tote filling machine, with easy to control swing-arm lance positioning, is designed to fill 15, 30 and 55 gallon plastic or metal drums an a variety of tote sizes and styles. XL machine option available for over-sized tote filling. High Accuracy Net Weight Filling. Choice of Top/Inside or Bottom Fill Configurations. Traditional ball valve or Proportionally controlled filling lance option. Ideal Pase precision crafted fill lance for high accuracy filling. Allen-Bradley PLC for Machine Control, Color HMI Touch Screen Interface, Multiple conveyor configurations, including: gravity roller or powered conveyors in addition to zoned in-feed and out-feed powered conveyor sections. Swing Arm & Slide to Position the Nozzle. 304 or 316 Stainless Steel and Teflon Wetted Parts. Simple Operation.
Get a Quote on a Swing-Arm Style Semi-Automatic Drum & Tote Filling Machine

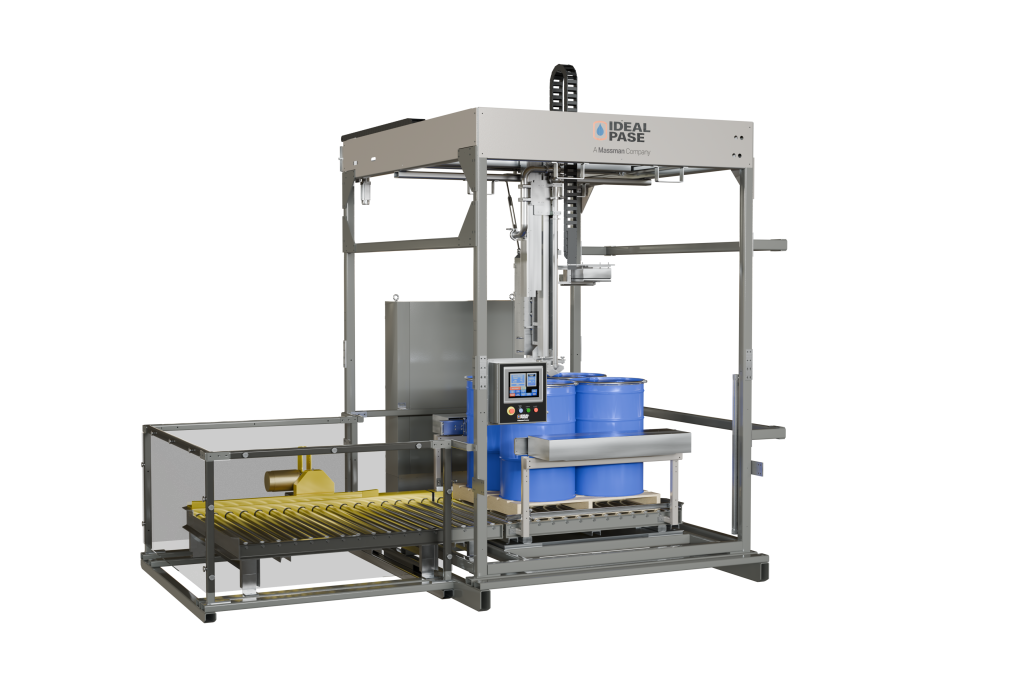

Automatic Gantry-Style Drum & Tote Filling Machine
| For Containers: | |
|
Automatic gantry-style drum and tote filling machine, with auto bung-locating vision system for hands free lance placement, is designed to automatically fill 15, 30 and 55 gallon plastic or metal drums an a variety of IBC tote sizes and styles. High Accuracy Net Weight Filling. Top fill, sub-fill and bottom fill modes. No operator required to move lance from drum to drum. Proportionally controlled filling lance with no upstream valves required. Cleaning-while filling station for optional, additional filling lances. 316/316L pacified product contact parts. Automatic, powered container height adjustments. Allen-Bradley PLC for Machine Control, Color HMI Touch Screen Interface, Multiple conveyor configurations, including: gravity roller or powered conveyors in addition to zoned in-feed and out-feed powered conveyor sections. NOTE: Can be purchased as a semi-automated filling machine and upgraded in the field with the bung locating vision system when needed. Extensive powered conveyor systems are available to meet any factory layout requirements. XP models also available.
Get a Quote on a Automatic Gantry-Style Drum & Tote Filling Machine
Beverage Filling Line
| For Containers: | |
|
The Ideal Pase custom designed and built sanitary net-weight drum and tote filling line for a major beverage supplier automatically transports; individual totes, four plastic drums on a pallet and fiber drums on a pallet with plastic bag inserts to one of two auto filling stations followed by single stations for; semi-automatic labeling , auto stretch wrapping and auto cover sheet placement (for palletized drums only).
The completed net weight beverage filling line automatically detects container type and size prior to the fill step and compares it to the stored filling recipes – that resides in the filling machines PLC– ensuring the right fill recipe goes with the correct container type and size. The dual automatic filling stations allow for simultaneous operator-free filling of any two container types increasing the overall output of this custom filling line.
Each filling station has a built-in vision system which auto finds the drum and tote bung locations prior to sanitary auto top or bottom filling, freeing up the operator to attend to other filling line duties.
Specialty Chemical Filling Line
| For Containers: | |
|
Ideal Pase’s semi-automated bottom filling drum and tote line filling delivers Increased production and throughput with Ideal Pase’s net-weight fill system technology and a variety of smart conveyor configurations. Totes and palletized drums are automatically transported from the initial in-feed conveyor onto the scale conveyor where totes are automatically filled (with no operator intervention) and drums are filled with the assistance of an operator. Once filled,totes and drums are automatically transported to conveyor sections where they can feed into labeling or shrink-wrapping stations or off-loaded via forklift for shipping. Ideal Pase’s smart conveyor systems increase the speed and productivity of your filling operation by incorporating sensors under PLC control on each conveyor section. Allowing the system to detect vacant conveyor sections and fill them with the next tote or pallet and ensure collision free filling production. Any combination of in-feed and out-feed conveyor designs are available.
