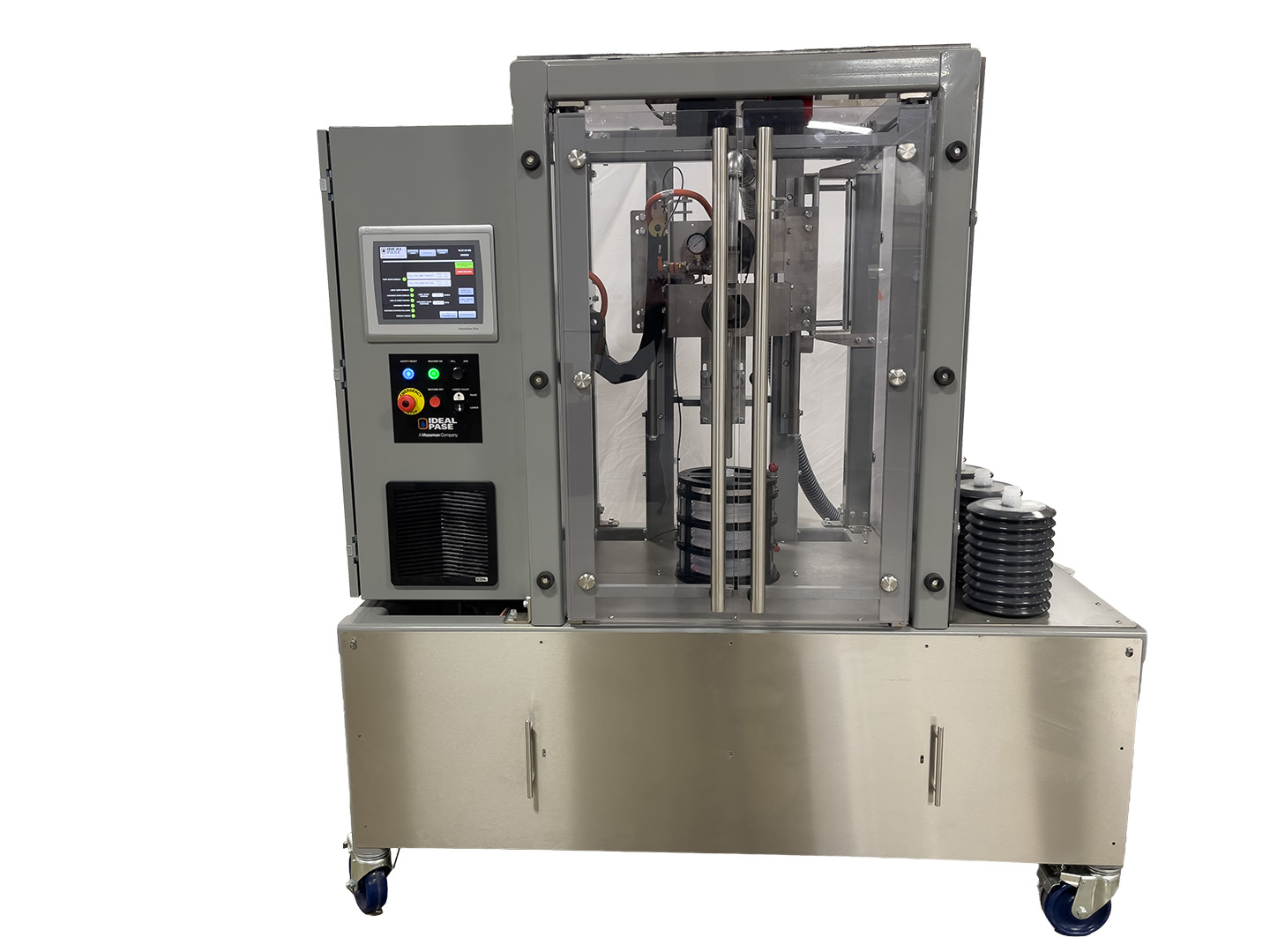

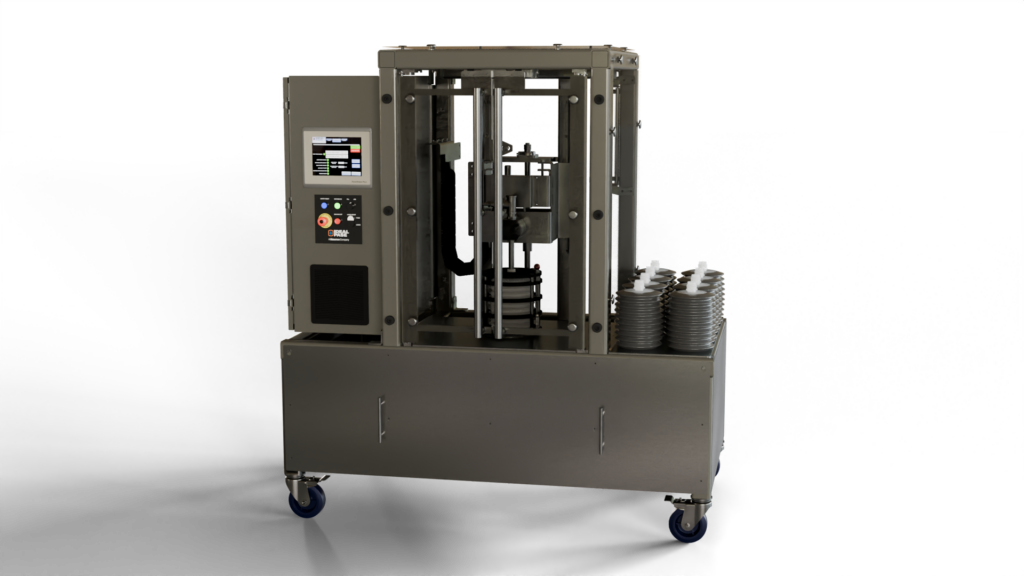

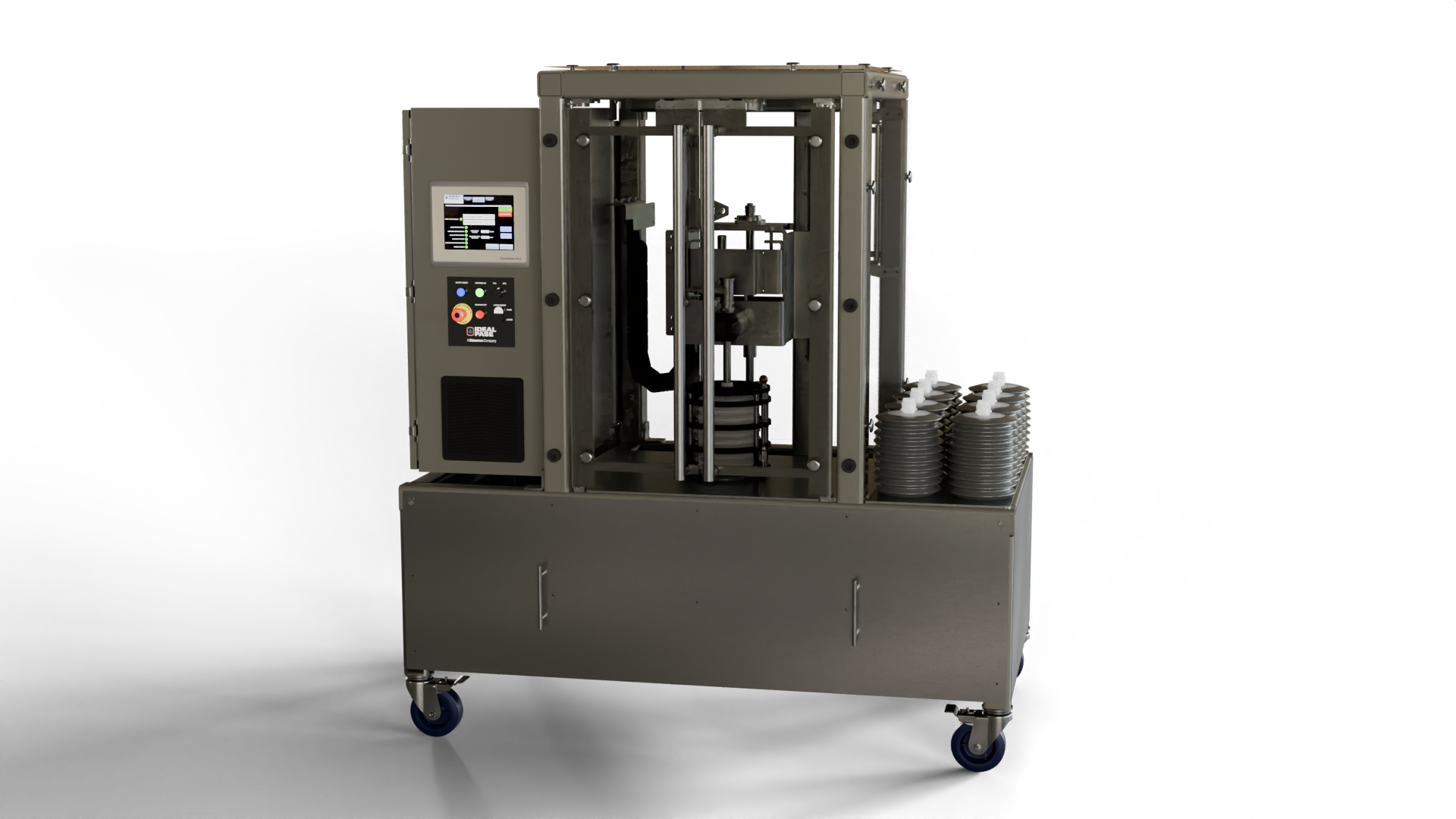

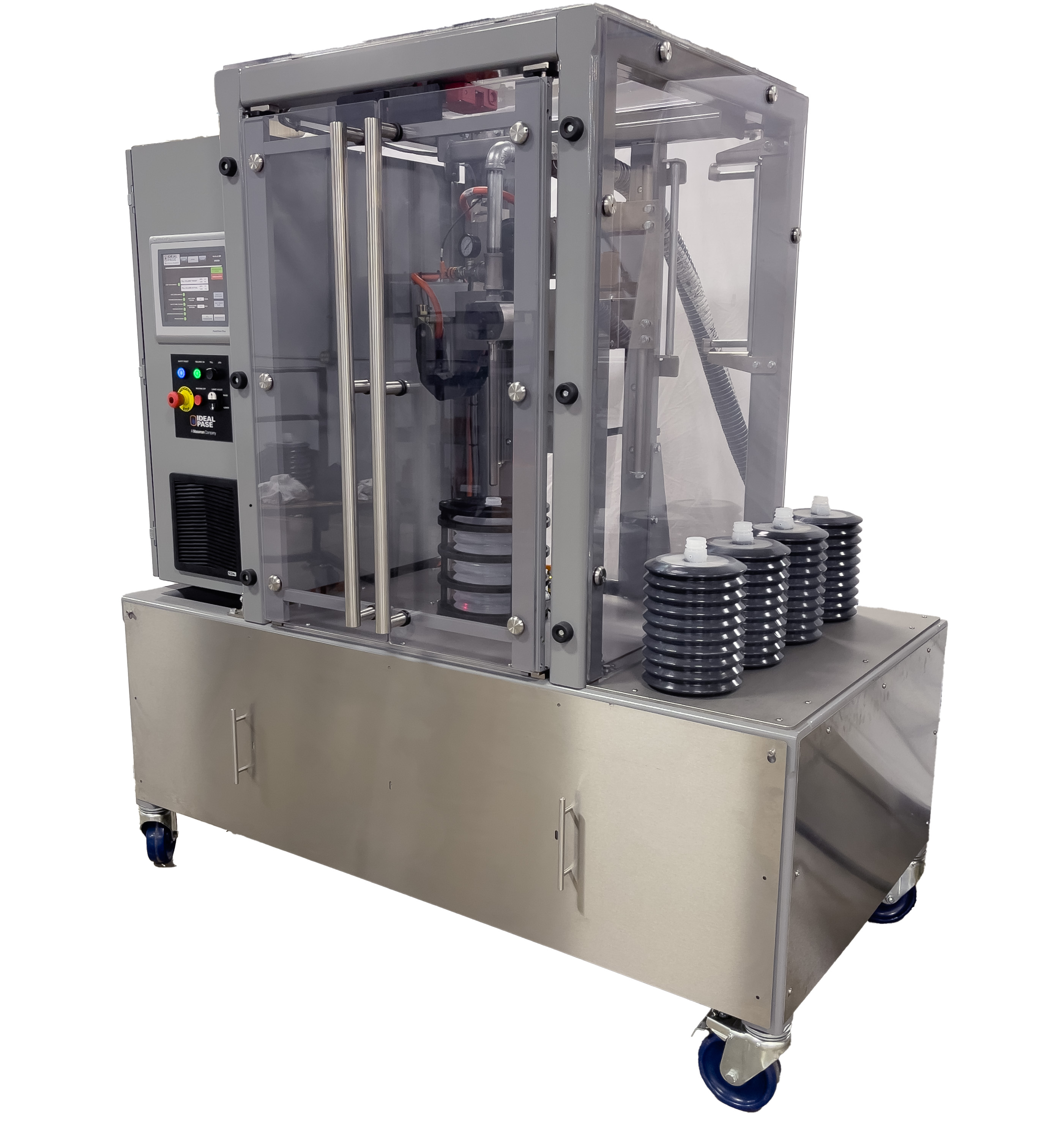

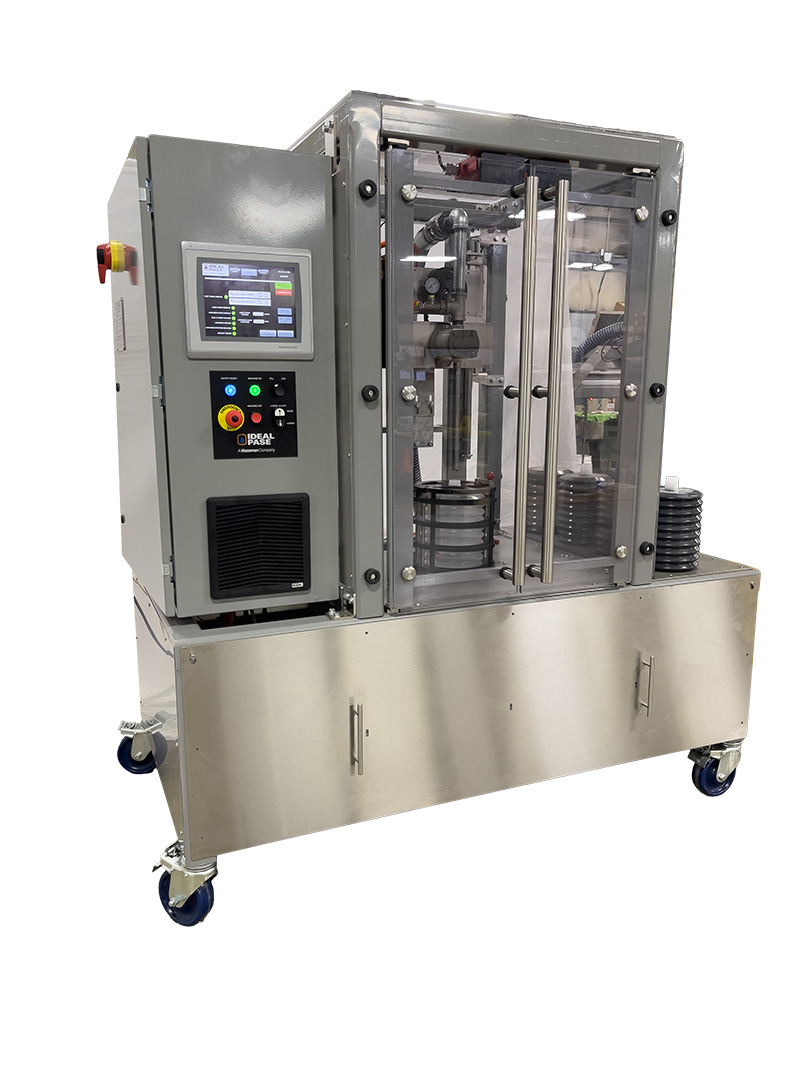

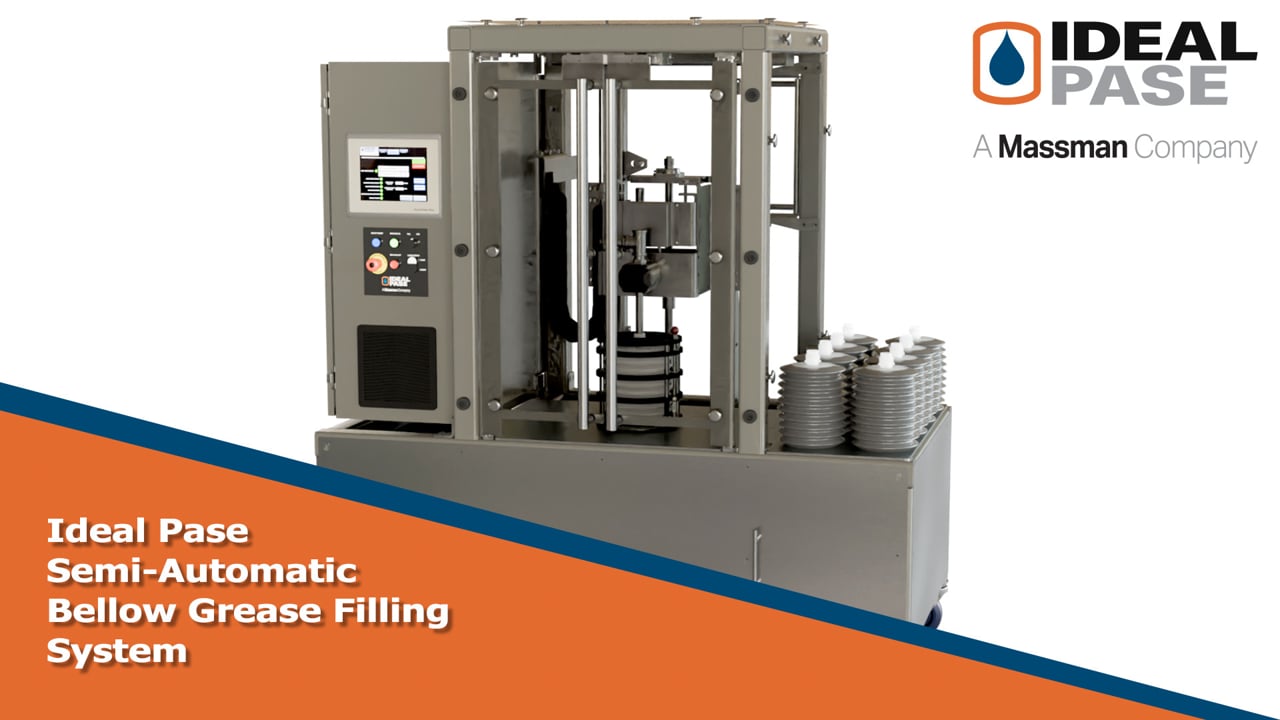

Semi-Automatic Single-Head Bellow Filler
Unlike low-viscosity liquids, grease does not naturally settle evenly in a container. It must be carefully controlled during dispensing to:
- Maintain volume accuracy
- Prevent trapped air pockets
- Ensure smooth, level surface appearance
- Avoid unnecessary rework
For bellow containers specifically, distribution uniformity is critical. Uneven filling can affect product performance and downstream packaging steps.
The Ideal Pase Semi-Automatic Single-Head Bellow Container Grease Filling System is engineered to address these challenges directly.
1. Servo-Controlled Fill Lance
The fill lance automatically lowers into the container prior to dispensing. As grease flows, the lance raise speed is servo synchronized to product flow rate.
This minimizes:
- Mounding
- Air entrapment
- Surface voids
The result is a controlled, bottom-up filling process designed specifically for viscous grease products.

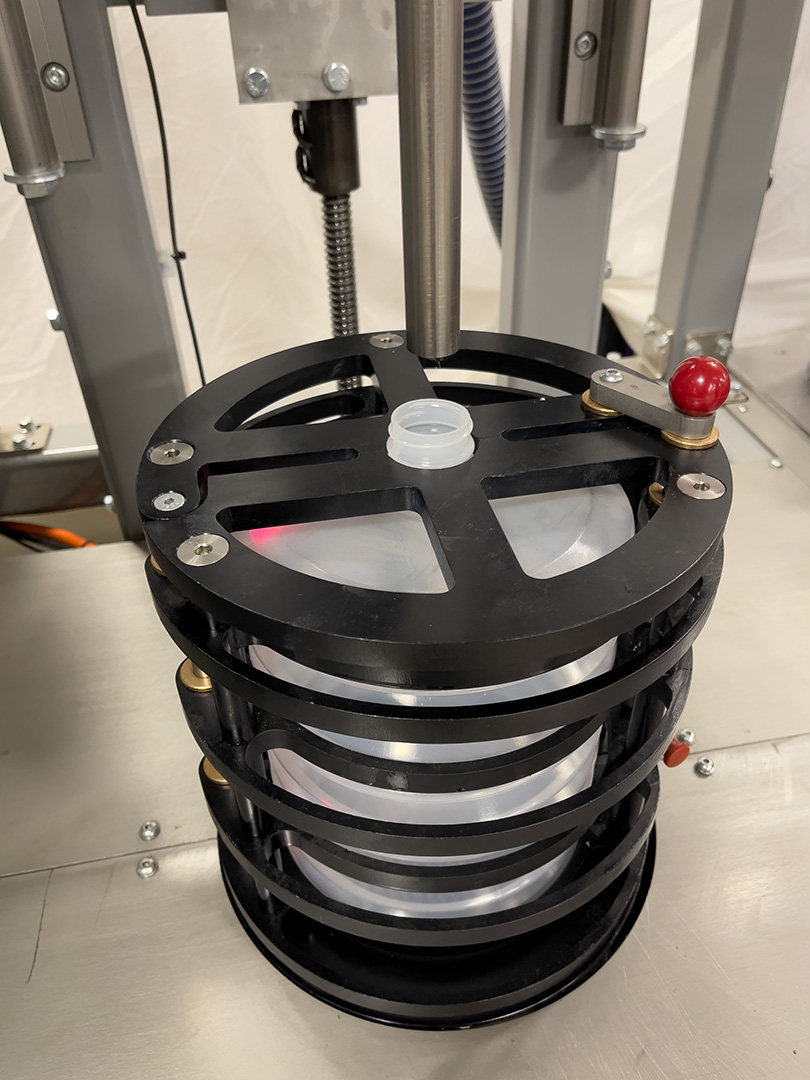

2. Servo-Controlled Container Rotation
During the fill cycle, the container rotates under servo control.
Why is this important?
Rotation promotes:
- Even product distribution
- Reduced mounding
- Uniform fill appearance
- Improved container balance
This is especially valuable in bellow containers where internal geometry can create uneven settling.
3. Precision Metering Pump Control
At the heart of the system is a servo-driven metering pump designed for grease applications.
This provides:
- Consistent flow rate control
- Repeatable fill volumes
- Tight tolerance accuracy
- Reduced product waste
For producers managing high-value lubricants or specialty greases, accuracy translates directly into profitability.
